Your ImoLaza Mini uses indicator lights to show the current status of the controller. Here’s how to understand them and what to do if something goes wrong:

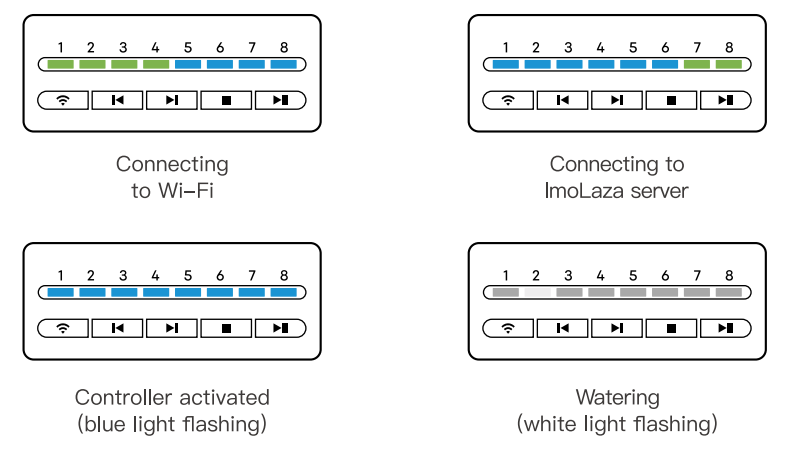

Normal Mode

A steady light means your Mini controller is working correctly. No further action is required.

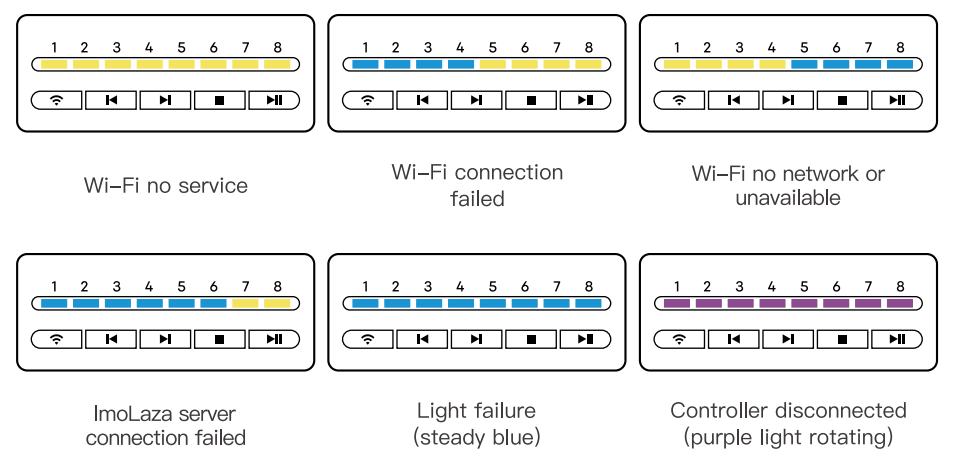

Network Trouble

If the light shows a network error signal, the controller is not successfully connecting to WiFi. Try these fixes:

1. Make sure your phone has granted Bluetooth and Location access.

2. Reset the controller and keep your phone within 10 feet during setup.

3. Confirm that the controller is well within your WiFi coverage area. If needed, move the router closer.

4. If you’re using a dual-band router, connect only to the 2.4GHz network and temporarily turn off the 5GHz band.

5. Try pairing with a tablet or Android device if your phone has issues.

6. Disable any ad-blocker settings on the router while adding the device.

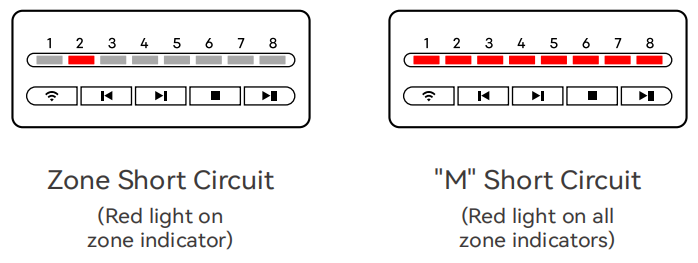

Short Circuit Alert

When the Mini detects a short circuit, the light will flash the warning pattern. This usually means a wiring or valve issue. Check the following:

1. Inspect zone wiring for damaged cables, weak insulation, or moisture.

2. Look at the valve coil for signs of burnout, water damage, or aging insulation.

3. Make sure the power supply is stable and not affected by overvoltage or major fluctuations.

Tip

By paying attention to the Mini’s indicator lights, you can spot issues quickly and fix them before they interrupt your watering schedule. If problems continue after troubleshooting, reach out to our support team for help.

Still need help?

In case the above method doesn’t work for you, please contact our technical support team directly using the contact information below. We will respond to you by email within 12h after your message reaches us.

Email: Support@imolaza.com
